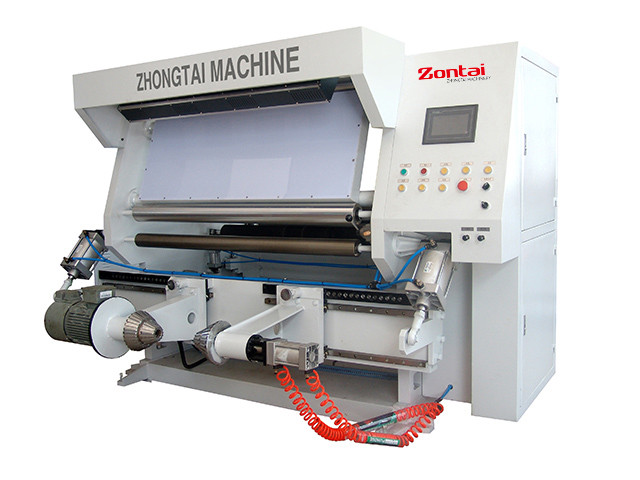

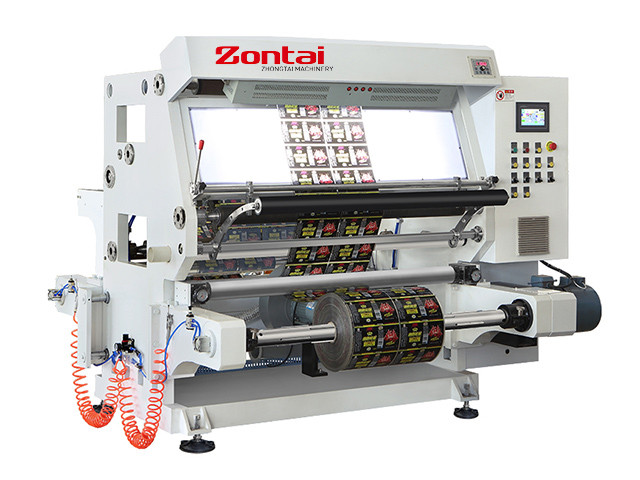

ZTM-E Economic Inspecting And Rewinding Machine

This machine is suitable to inspect and rewind BOPP, PET,CPP,PVC,AL- FOIL and paper with printing by strobe light and manually.

Product Details

Main Features:

1. The complete machine is equipped with imported PLC, and with a touch screen for operation.

2. he unwinding transmission is governed by a frequency inverter vector adjusting vector motor, and PLC can automatically calculate the unwinding Diameter , which can achieve the unwinding tension controlling constantly.

3. The traction transmission adopts frequency vector inverter adjusting vector motor; achieving constantly controlling the linear speed.

4. It uses strobe light for checking the printing quality and manually for stop when find the defect.



Technical Parameter:

Width of Material :

1300mm

Diameter of Material:

Diameter 800mm

Diameter of Paper core:

Diameter 76mm

Verifying Speed :

300m/min

Width of Finished Products :

30-1300mm

Slitting Precision:

0.5mm

Weight :

2500kg

Total Power:

15kw

Overall Dimension(L*W*H)(mm):

1735*2800*1800
