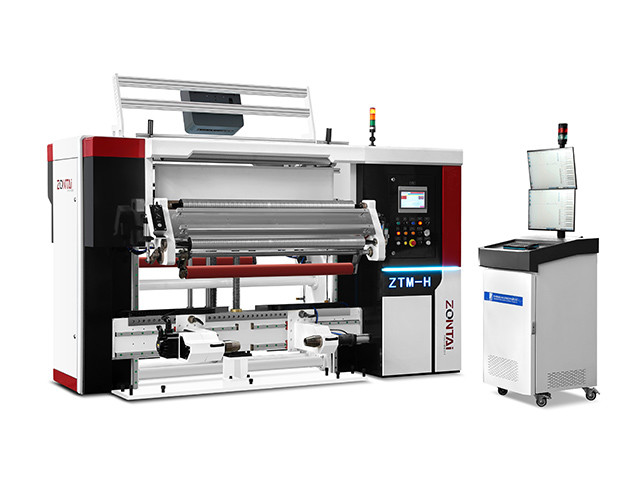

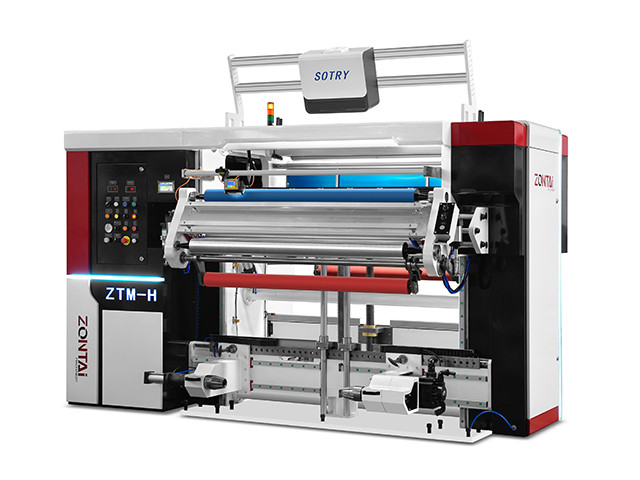

NEW ZTM-H Automatic inspection Doctoring Rewinding Machine for printing film

ZTM-H Series Automatic doctoring rewinding machine for printing film, max. working speed 400m/min; Web width 300-1300mm; unwinder diameter 1000mm, rewinder diameter 1000mm, unwinder and rewinder core 3 inch and 6inch.

Product Details

ZTM-H Series Automatic doctoring rewinding machine for printing film, max. working speed 400m/min; Web width 300-1300mm; unwinder diameter 1000mm, rewinder diameter 1000mm, unwinder and rewinder core 3 inch and 6inch.

1. It can forwarder and reverse operation;

2. Equipped with strobe light/ inpection light for manual checking,

3. And it can be worked with automatic inspection system, such as AVT, DAC, E L, Sotry, Kesai, any brands of inspecting systems.

4. Unwinder and rewinder use shaftless type hydraulic system control.

5. Material’s up and down adopts separate motor and speed reducer, this type will make press roller always keep same angle in the material,

6. Tension will be more stable than normal type.

7. Joint table for connecting rolls in unwinder and rewinder sides.

8. Good brand LPC for correct the deviation.



Main technical parameter:

MODEL

ZTM-H

Jumbo roll width

1000-1300mm

Diameter of roll

Ø800mm-1000mm

Diameter of rewinding

Ø800mm-1000mm

Inner dia.of paper core

3'' and 6''

Rewinding speed

10-400m/min

Tolerance of EPC

≤0.1mm

Total power

15KW

Weight

5000Kg

overall dimension (L x W x H)

3200mmx2100mmx1950mm
