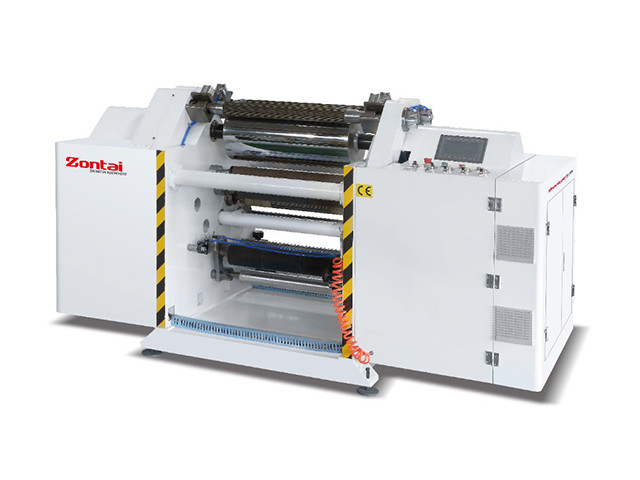

This model is a perfect and ideal machine for slitting small scale materials, such PVC,PET,BOPP, plastic film, laminated film, and paper rolls etc. The main motor adopts variable frequency speed regulation, to use the constant tension magnetic powder control, auto photoelectric edge correction, two units of magnetic powder clutch on rewinding, blocking with main motor, control(barometric pressure)the central volume reeling and with contact the surface, the two axle inter rewinding, never nips the mouth, and have the meter preset, auto stop functions.
Main parameters:
|
Model |
ZTS-A |
|
Effective width |
600-1300 mm |
|
Slitting Speed |
0--200m/min |
|
Max.Unwinding Diameter |
600-1000mm |
|
Max.Rewinding Diameter |
450mm |
|
Min. slitting width |
10mm |
|
Total Power |
11kw |
|
Work Voltage |
3-phase four lines AC380V |
|
Machine Dimension |
1400x1600x1100mm |
