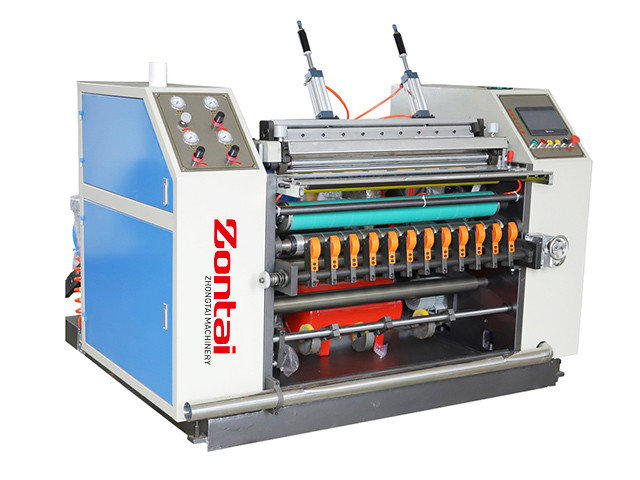

Model Type |
900 |
|
Max. Parent Web Width |
900mm |
|
Max. Parent Web Dia.: |
1000mm |
|
Max. Rewinding Dia.: |
150mm |
|
Max. Unwinding Speed: |
150m/min |
|
Unwinding Shaft: |
3” Pneumatic Air Expanding Shaft |
|
Weight: |
1000kg |
|
Voltage: |
3 Phase 380V 50HZ |
|
Rewinding Shaft in Diameter |
0.5'',1 inch or Coreless (8mm) |
|
Slitting size |
56mm and 79mm |
|
Overall Dimensions: |
2150*1950*1700mm |
SPECIFICATIONS：
|
Application Material |
|
Ø Slitting thermal paper,bond paper, Cash register paper, Fax Paper,POS paper,ATM paper, and other small ribbon roll |
|
Main Configurations |
|
Ø Equipped with Panasonic PLC and Weinview touch screen, all the parameter are displayed on the monitor. You only need to setup the material roll diameter and thickness, the PLC will give a proper parameters for machine running automatically. Ø Equipped with Auto Tension Control System for unwinding tension. Ø With meter counter. Got to the setup data, the machine stops and alarms. Ø It adopts Synchronic Belt to avoid the over lap problem. Ø It adopts frequency inverter for main inverter motor driving, the speed can be displayed on the operation panel. Frequency inverter motor: 2.2Kw. Ø All transmission rollers have been dynamic/static balance treated. Ø Equipped with emergency switch. Ø All the electric appliances has been gained the CE certificate. |
|
Unwinding Section |
|
Ø 3” air expanding shaft. Ø Equipped with automatic pneumatic lift-up loading system for heavy material roll loading. Ø Equipped with 10 Kg/ m2 automatic braking device x 1 to material feeding tension control. |
|
Unwinding Tension Control |
|
Ø Equipped with automatic tension controller(diameter-calculating type) to gain a constant tension. Ø The unwind core size, and initial unwind diameter only needs to be preset on the touch screen, the PLC controls it automatically. Easy Operation. |
|
Auto Tucker |
|
Ø It adopts Auto Tucker to tuck in the paper to cores automatically. No need paste in the tape. Easy operating and process the efficiency. |
|
Red Line |
|
Ø Set up the red line length in the touch screen. For example, 1-2 meter, when the rewinding meter reach 1 meter,it will be in the red line automatically.Also as customer requirement. |
|
Rewinding Section |
|
Ø 0.5” rewinding shafts are all available in this machine, we can also supply as request. |
|
Trimmed Waste Edge |
|
Ø Waste edge trim device is included in the slitting device. Each side of edge is used for trimming the waste edge. Ø Equipped with air blow for waste material edge trimmer |
Optional device:
Circle knife blade, 8usd/pc
Circle knife down knife, 12usd/pc
Circle knife full set, 30usd/set
Automatic core loader, 1,500usd
