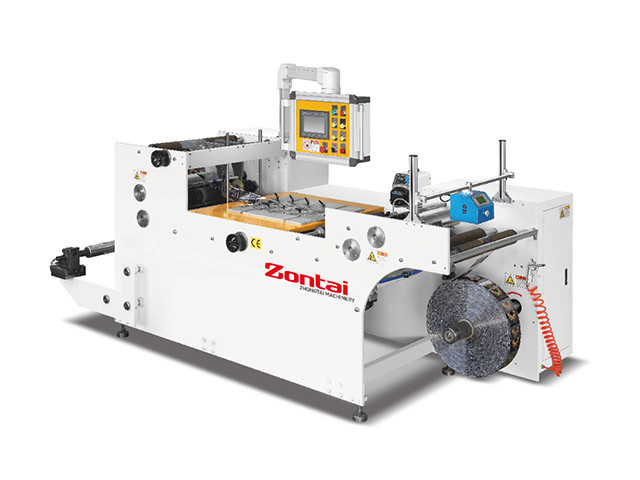

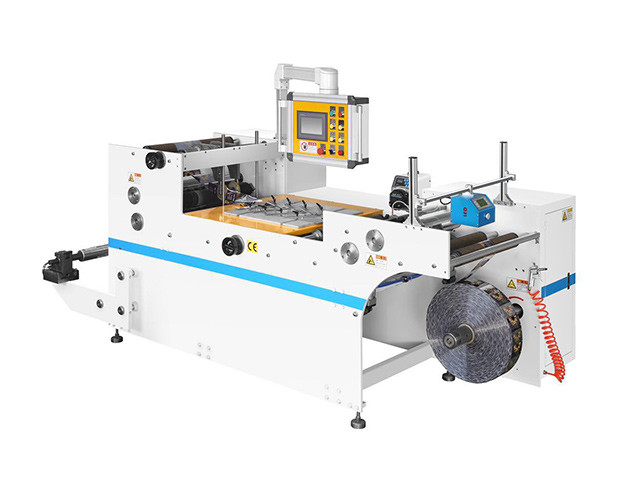

Machine Characteristic:
1)Stable and heavy-duty frame for high speed operation of 300n/min.
2) Adjustable forming plate creates efficient operation.
3) Auto solvent feeding control.
4) Auto tension control for unwind/rewind unit to maintain the optimun tension.
5) Imported brand EPC device, precision 0.1mm.
6) Accurate product width.
7) Cantilevered rewind/unwind shaft for fast roll changeover.
8) PLC with color touch screen control system.
9) Needle type gluing method, work with glue pump and PLC.
10) Rewind oscillation control to produce high quality rolls.
11) Static eliminator is adopted before rewinder.
12) 4 Pieces of Servo motors to ensure good performance.
Main Technical Parameter:
Model |
300mm |
Width of Unwinding |
620mm |
Diameter of Unwinding |
600mm |
Diameter of Rewinding |
700mm |
Min. Sealing size |
60mm |
Max. Sealing size |
300mm |
Max speed of Working |
300m/min |
Max speed of Machine |
330m/min |
Voltage of Whole Machine |
220V/50HZ |
Dimension of Whole Machine |
2.85mx1.6mx2.1m |
